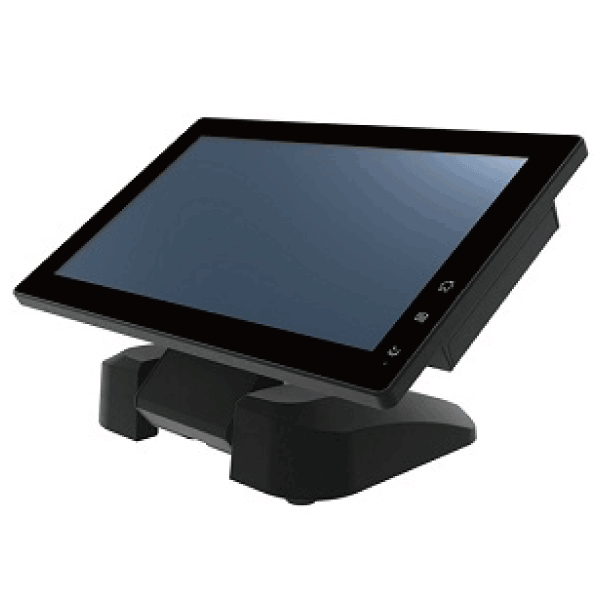

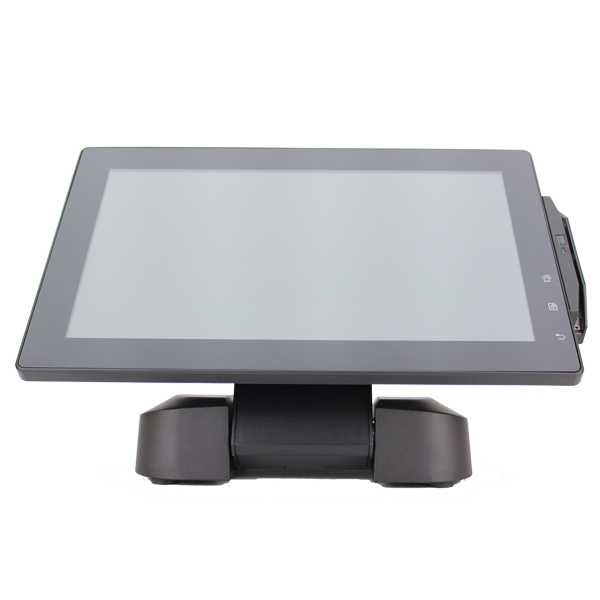

QA-1014
Android Pos with Slimmer and Flat folded Design
We understand customers are expecting for high quality and high speed pos system. So we spend a lot of times developing and design the features with high speed graphics,efficiency to make it become easy and safety
1. Industrial Android motherboard for reliability and durability

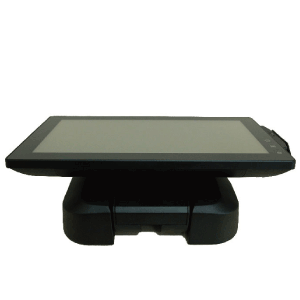

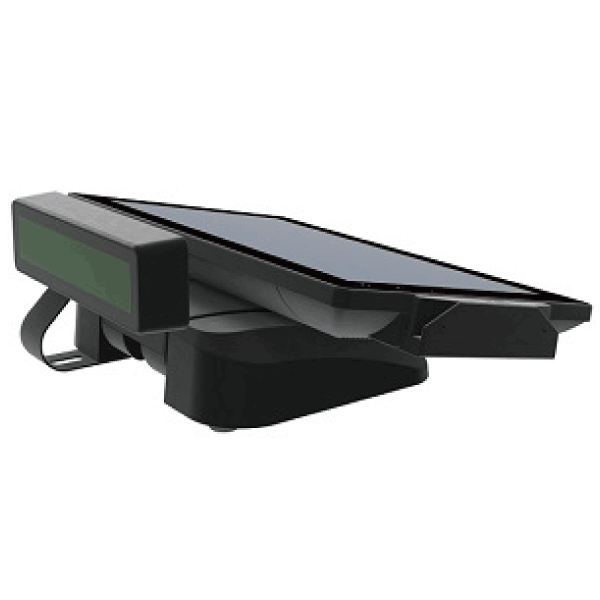

2. Foldable to become Wedge POS
3. True-Flat Resistive Touch Technology (Single Core) True-Flat Projected Capacitive Technology (Dual Core)
4. Fanless & Stylish design
5. Rich I/O and rich peripheral options
6. Die-casting stand for optimum stability
7. Cable cover to help preventing unwanted tempering

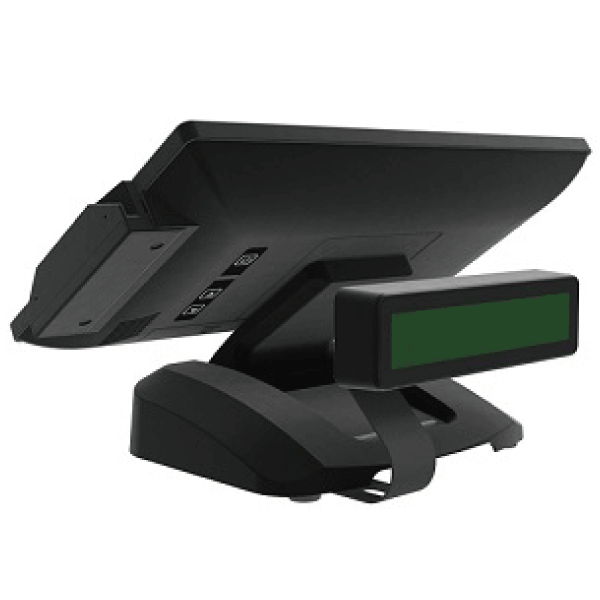

8. Wide tilt angle customer display for easy and comfortable viewing
9. Standard 75 x 75 VESA holes for pole-, wall-, and stand- mountings

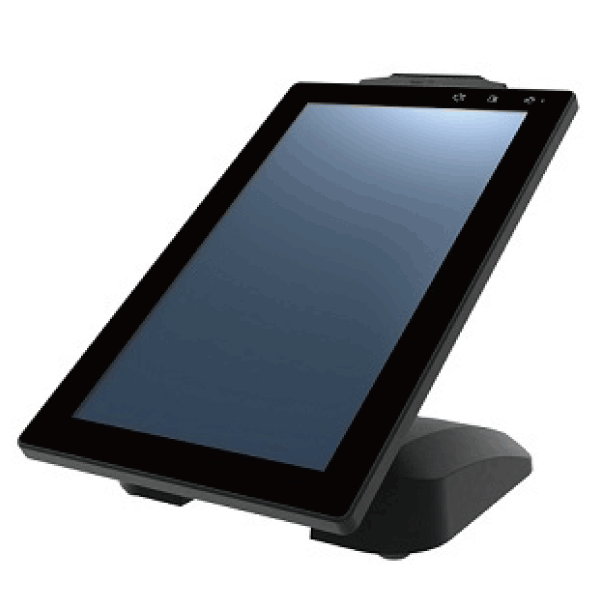

10. Rotatable Display for landscape and portrait displays
| QuriPOS | QA-1014 | ||
| CPU Support | ARM Cortex A8 – 1.0GHz | ARM Cortex A7 – 1.2GHz Dual-Core | |
| System Memory | DDR3, 1GB | ||
| Storage | NAND FLASH | MLC NAND FLASH 4GB (on board) | MLC NAND FLASH/eMMC 8GB (on board) |
| Micro SD | 1 x Micro SD slot (Max. 32GB) | ||
| LCD | Size | 14″ TFT LED LCD Panel (Wide) | |
| Brightness | 200cd/m2 (Typ.) | ||
| Resolution | 1366 x 768 | ||
| Touch Screen | True-Flat Resistive | Projected Capacitive | |
| Tilt Angle | 0 ~ 110 degree | ||
| External I/O Port | Rear | 2 x USB 2.0 Ports 1 x Micro USB 2.0 Port (For image update usage ONLY) |
|
| 2 x Serial port (RS232);(COM2 0/5V/12V) | |||
| 1 x LAN (10/100) | 1 x LAN (10/100/1000) | ||
| 1 x Line-out | |||
| 1 x Power Switch | |||
| Speaker | 2 x 2W speaker | ||
| Power | External power adapter,50W/12V | ||
| EMC Safety | CE, FCC Class A | ||
| Environment | Operating Temperature | 0°C ~ 35°C | |
| Storage Temperature | -20°C ~ 60°C | ||
| Operating Humidity | 20% – 85% RH non condensing | ||
| Storage Humidity | 20% – 85% RH non condensing | ||
| OS Support | Android 4.1 | Android 4.2 | |
| Dimension (W x D x H) | Landscape | 382 x 265 x 106 mm (Wedge POS) | |
| 382 x 240 x 262 mm | |||
| Portrait | 240 x 375 x 120 mm (Wedge POS) | ||
| 240 x 267 x 333 mm (Tilt angle at 70 degree) | |||
| Weight (N.W./G.W.) | 4kgs / 5kgs | ||
| Wall Mount | VESA 75 x 75mm | ||
