- Compact and Stylish Design
- Paper Auto-Cutter
- Print Speed: 250 mm/sec

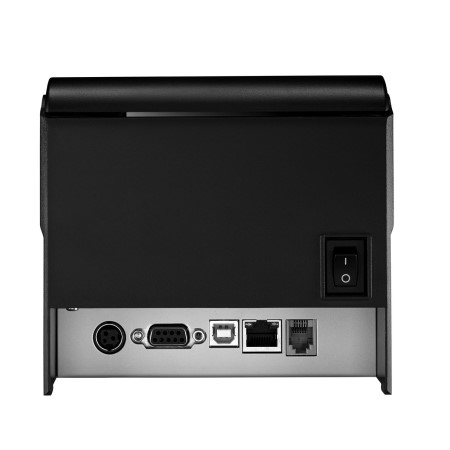

- Multi I/O Interface (Serial + Ethernet + USB)
- Cash Drawer Connection Port (RJ-11)
- Compatible with ESC / POS Print Command Sets
- Various Drivers Available

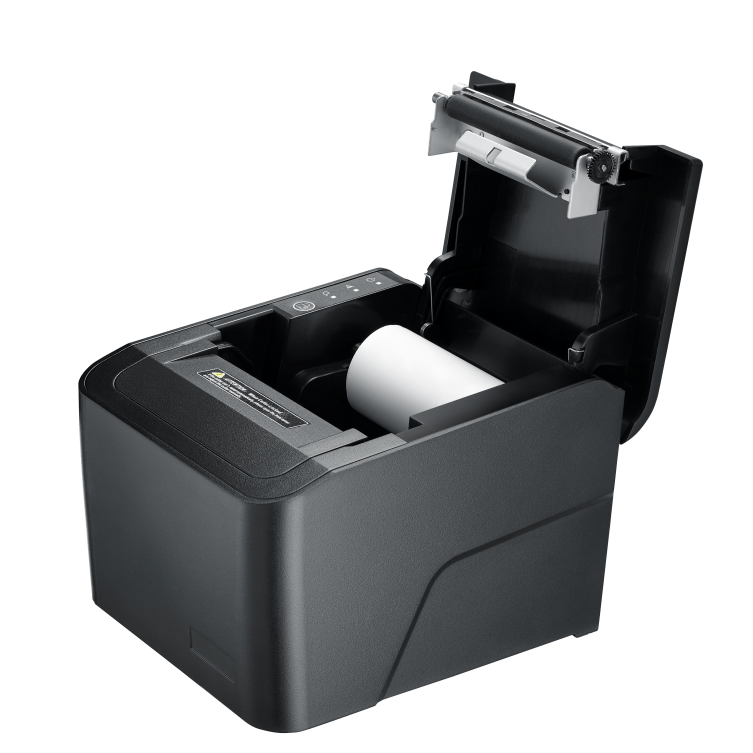

- User Friendly, Drop-and-Print Paper Installation
- Simple Paper Jam Elimination
- Multiple Language Fonts Selectable
- DHCP Client mode support (for advanced model, QP-250)
Receipt Printers

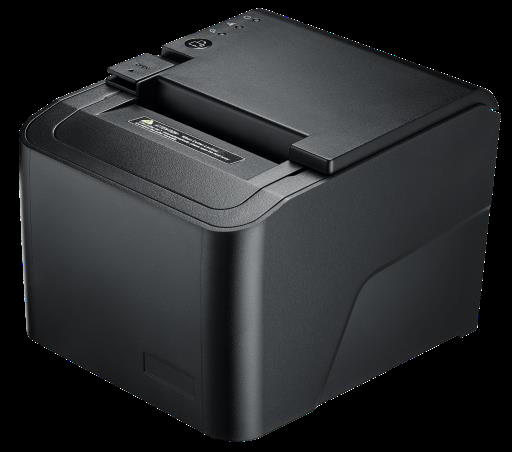

QP-250
The series, QP-250, thermal receipt printer offers a reliable 250mm/sec high speed at a competitive cost. It is available in a flexible connectivity option: a 3-in-1 (RS-232/ Ethernet/ USB). The series also offers a cash drawer (RJ-11) for cash storage, which helps users to install a printing station swiftly and flexibly.
QP-250 also supports DHCP client mode for receiving IP address from the DHCP server automatically. The thermal receipt printer can perform the everyday printing jobs and is ideal for retail applications, such as grocery, bakery, take-out beverages shop, and fast food stores.
| Model | QP-250 |
| General | |
| Print Method | Thermal line printing |
| Print Speed | 250mm/sec |
| Print Life | 100 Km |
|
Print Font (ASCII Mode) |
ANK Font.
Font A: 12 x 24 dots, Font B: 9 x 17 dots |
| Print Font (Graphic Font) | Chinese Character: 24 x 24 dots |
| Print Resolution | 576 dots/line or 512 dots/line |
| Print Font Character Support * | International Font, Big 5 Chinese, GB Chinese, Japanese, Korean |
| Character Per Line | 48 (Font A)/42 (Font B) |
| Effective Print Width | 72mm |
| Paper Width | 79.5mm± 0.5mm |
| Paper Roll Diameter | ≦83mm |
| Paper Thickness | 0.06~0.08mm |
| Driver | Win7/ Win8/ Win10, compatible with OPOS and ESC/POS |
| Print Command | ESC/ POS print commands set compatible |
| Auto Cutter | Partial |
| Paper End Detection | Yes |
| Over-Heat Halt-on Protection | Yes |
| Buffer | |
| Receipt Buffer | 128K bytes |
| User-Defined Buffer | 128K bytes |
| NV Flash Buffer | 256K bytes |
| Interface | |
| Serial | Multi I/O Interface: Serial +Ethernet +USB (UTP) |
| Ethernet | |
| USB | |
| Cash Drawer | +24VDC/1A, 6-Wire RJ-11 Socket |
| Others | |
| Power Input | +24VDC/2.5A (with External Adapter 100~240VAC, 50/60Hz) |
| Color | Black |
| Compliance | FCC, CE, WEEE, RoHS |
| Weight | 1250 g |
| Dimension (L x W x H: mm) | 183.5 x 140 x 126 |
| Operating Temperature | 0°C ~ 45°C |
| Operating Humidity | 10% ~ 80% RH, non-condensing |
| Storage Temperature | -10°C ~ 60°C |
| Storage Humidity | 10%~ 90% RH, non-condensing |
For Drivers, User manuel or other download requirement, please mailto: tech@quripos.eu
