P-25

€15.00

  • 80mm Width,203dpi print resolution(8dots/mm)
  • 250mm/sec high print speed
  • Internal Ethernet+ USB 2.0+ RS-232 interface standard
  • Bluetooth interface optional
  • Allow users to upgrade printer firmware
  • Allow print density and speed to be fine-tuned
  • Better quality receipt printing among same category in
    the market
  • Multifunctional button and status indicator available
  • Support Windows, Android , Linux device connection
Category:
  • 80mm Width,203dpi print resolution(8dots/mm)
  • 250mm/sec high print speed
  • Internal Ethernet+ USB 2.0+ RS-232 interface standard
  • Bluetooth interface optional
  • Allow users to upgrade printer firmware
  • Allow print density and speed to be fine-tuned
  • Better quality receipt printing among same category in
    the market
  • Multifunctional button and status indicator available
  • Support Windows, Android , Linux device connection
Specification

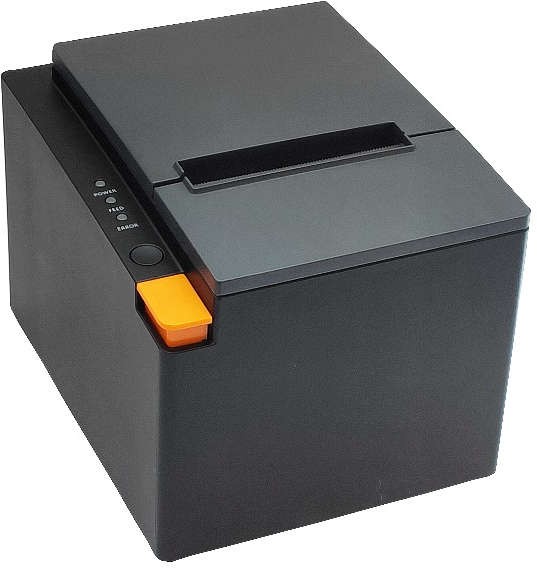

Model P25
Printing Method Direct Thermal line
Resolution 8dots/mm(203DPI)
Print Speed 250mm/sec
Print Font (ASCII Mode) ANK Font A:12×24dots, Font B:9×17dots,Simplified/Traditional Chinese：24×24dots
Character Per Line Color Fort B -64/line, Fort A-48/line
Black
Paper Width 79.5 ±0.5mm
Print width 72mm
Paper thickness Paper diameter 0.06~0.08mm
83mm
Print density 576dot/line


Reliability

 Thermal print head 100km
Auto cutter 1.5million cuts


Storage

 Data buffer 8K
User-Defined Buffer 2K
NV Flash 256K




Interface

 USB 2.0 Full Speed

Internal Ethernet 10/100Mbps RS-232 Serial

Bluetooth
Buzzer Standard
Sensor Head open sensor ,Paper out sensor, Print head temperature sensor , Cutter position sensor




Cutter

 Method Sliding type
Paper thickness Cut paper method 0.06~0.08mm
Half Cut
Work period 0.4s/times
Cut length range 10mm
Cutter frequency 60 beats per minute
Thermal print head temperature range 4-60℃
Thermal print head voltage range 22.5～26.5V DC


Power

 External universal switching power supply

Input: AC 100-240V, 1.0A, 50-60Hz, Output: DC 24V, 2.5A, 60W
User Interface 1 power switch ，1 buttons(Feed) ，3 LED( POWER、ERROR、PAPER )
Rotation Font and barcode support 0, 90, 180, 270 degree
Barcode type UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODEBAR/CODE93/CODE128 /QRCODE
Print Mode Standard Mode, Page Mode
Print Command EPSON/ POS compatible
Physical dimension 175x138x124mm(L×W×H)
Weight 1.5KG
Certification standards CE Class A, FCC Class A


Environment Concern

 Operation： 5～45℃ ,10～80%non-Condensing Storage： -10～50℃ ,10～90%non-Condensing

P25 Specification

For Drivers, User manuel or other download requirement, please mailto: tech@quripos.eu
