XT-5515

In today’s retail and hospitality market, POS terminal is no longer just a cold and hard business tool. It is a part of the store decoration, a part of the store image. Each curve and detail of the POS terminal should add something to the overall mood of the store, to lift the shopping experience of the customers.

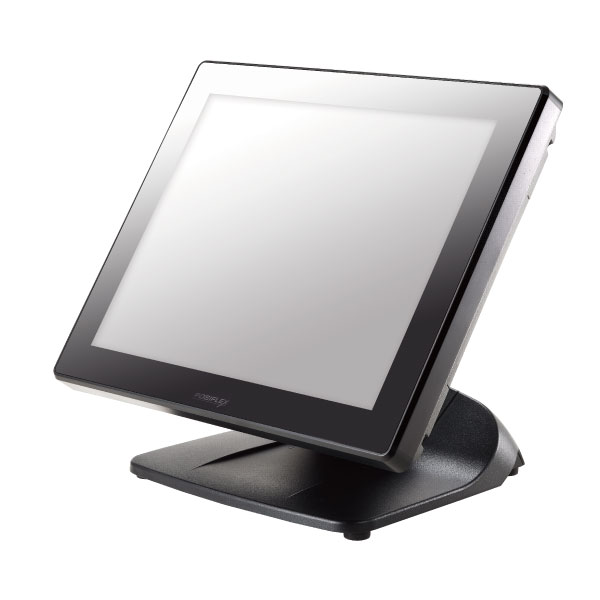

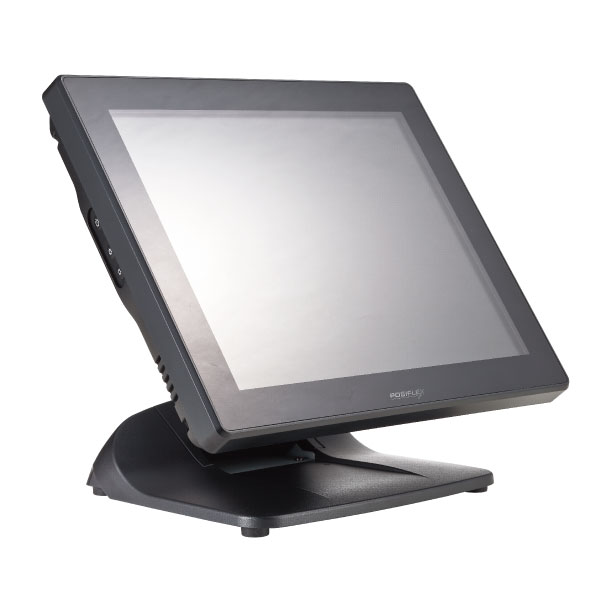

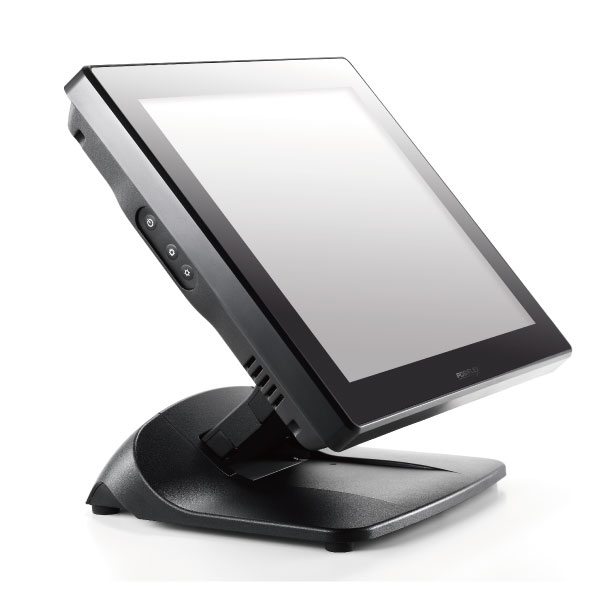

With the true-flat PCAP touch screen supporting 10 points multi-touch, beautifully sculptured slim body, sexily curved base stand, Posiflex JIVA XT-5515 looks right at home at any elegantly decorated store. And more than just good looks, Posiflex JIVA XT-5515 is powerful enough to handle any task imaginable that comes its way.

  • Fanless Design
  • Intel 4th generation Haswell CPU

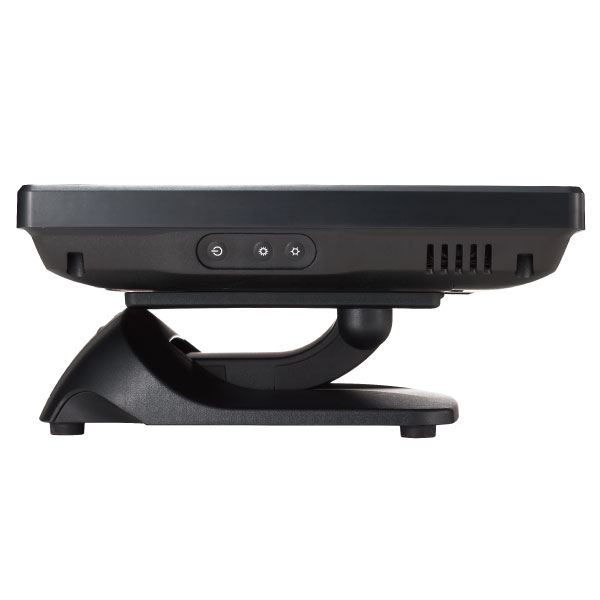

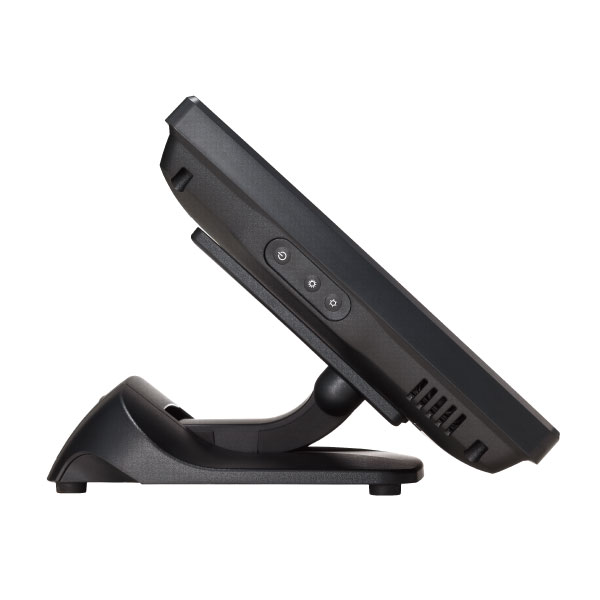

  • New GEN7E foldable base that allows JIVA XT Series to be configured into different configurations (U.S. Patent #9004436)
  • New GEN8E foldable base that integrates internal power adaptor and Powered USB port into the base stand (U.S. Patent #9004436)
  • Mini-PCIe expansion slot
  • Dual LAN port
Specification JIVA XT-5515
System Configuration
Processor Intel Core i5-4570TE / 2.7GHz up to 3.3GHz / 4M Cache
Intel Core i7-4770TE / 2.3GHz up to 3.3GHz / 8M Cache
System Memory DDR3 1333 SO-DIMM x 2, max. 16GB
Storage Device SATA Storage x 2, factory default 320GB SATA HDD x 2
RAID Function Yes
Power Supply 12V / 120W
OS support Windows 7 / POSReady 7 / Windows Embedded 8.1 Industry / Linux per request
Display & Touch
LCD Display 15″ TFT LCD
LCD Resolution 1024 x 768
Touch Function True-flat PCAP touch with 10 point multi-touch support (IP65 on front panel)
I/O & Expansion
Serial Port 6, DB9 x 2 + RJ50 x 2 on I/O plate, COM5/COM6 via optional cable from service window; 5V support on all COM ports, 12V support on COM 1 to COM 4
Parallel Port 1, via optional conversion cable
Standard USB Port 6 (USB3.0/2.0 x 2 + USB 2.0 x 4)
Powered USB Optional 24V x 1 + 12V x 3 via GEN8E base
LAN Port 10 / 100 / 1000 Mb x 2
VGA Port VGA x 1, 12V support for Posiflex monitors
CR Port 1, control 2 CR via optional Y-cable
PS/2 Keyboard 1, via optional conversion cable
UPS Port Yes
Audio Internal 2W speaker x 1 + Line-out
Extension Slot mini-PCIe slot x 1
Built-in Device
Built-in MSR N/A
Built-in Keyboard N/A
Built-in Printer N/A
Built-in FPU N/A
Built-in WIFI Optional mini-PCIe WIFI module
Built-in RFID Reader N/A
Built-in Smartcard Reader N/A
Built-in Handset & Mic N/A
Built-in Webcam N/A
Physical Dimension
Dimension (W x D x H in mm) 372 x 320 x 252.7
Weight (N. W. in kg) 5.86
Environmental
Operating Condition 0°C – 40°C, 20%RH – 90%RH (Equipped with HDD);
0°C – 50°C, 20%RH – 90%RH (Equipped with SSD)”
Storage Condition -20°C – 70°C, 10%RH – 90%RH
** The product information and specifications are subject to change without prior notice.
