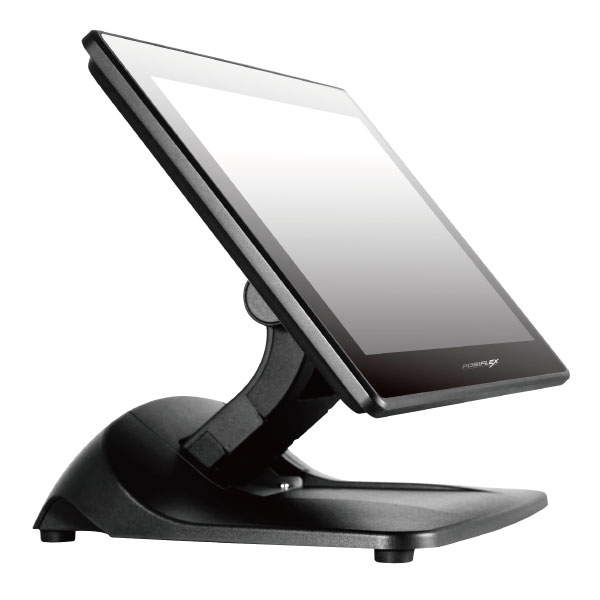

XT-2614Q

XT-2614Q is POSIFLEX’s answer to the raising demands for the Android based POS terminal with all the features and capabilities of a traditional POS. It allows store owners to smoothly run the daily operation, while XT-2614Q delivers a low total cost of ownership and provides years of dependable operation.

Categories: ,

Looks
Slimmer than ever, and with every curves and details carefully thought out to make XT-2614Q one of the most visually desirable terminals in the market.


Flexibility

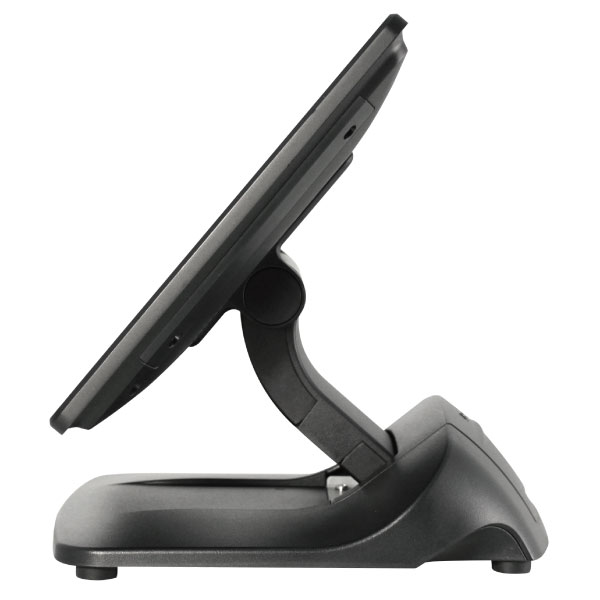

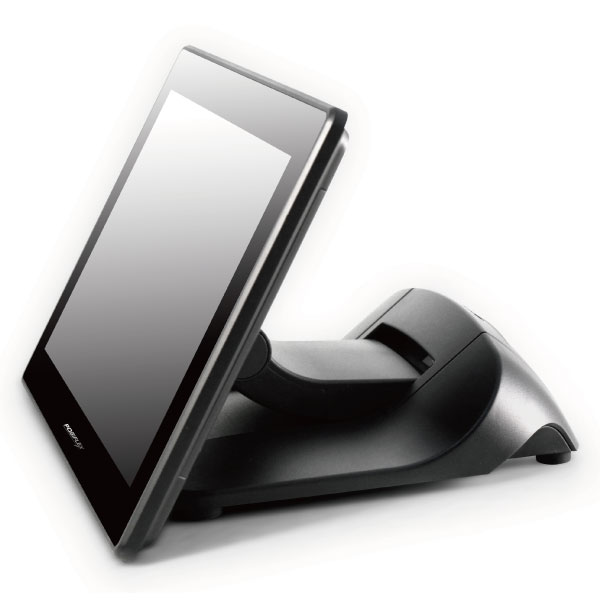

To provide unmatched flexibility, XT-2614Q equips with the foldable base that can be configured into “Flat Folded Mode”, “Low Profile Mode” or “Full Extended Mode” depending on the application.

Fanless Design
No more headaches on fan maintenance! Fan-free design not only allows XT-2614Q to function well in harsh environment, it also enables the terminal to run quietly in places such as hospitals, where silent operation is of upmost importance.

Customer-facing application
In addition to the main screen, XT-2614Q has a second VGA output connected to the second customer display for advertising and customer communications.

Specification XT-2614Q
System Configuration
Processor Quad Core 1.0GHz
System Memory DDR3 1GB
Storage Device 8GB eMMC + Micro SD
RAID Function N/A
Power Supply 12V / 40W
OS support Android 4.4
Display & Touch
LCD Display 14” TFT LCD
LCD Resolution 1366 x 768
Touch Function True-flat PCAP Touch with multi-touch support (IP65 on front panel)
I/O & Expansion
Serial Port DB9 x 2, 5V / 12V support on COM 2
Parallel Port N/A
Standard USB Port 3
Powered USB N/A
LAN Port 10/100/1000 Mb x 1
VGA Port 2nd VGA port (SDK will be provided for software integration)
CR Port N/A
PS/2 Keyboard N/A
UPS Port N/A
Audio Internal 2W speaker x 1
Extension Slot N/A
Built-in Device
Built-in MSR N/A
Built-in Keyboard N/A
Built-in Printer N/A
Built-in FPU N/A
Built-in WIFI N/A
Built-in RFID Reader N/A
Built-in Smartcard Reader N/A
Built-in Handset & Mic N/A
Built-in Webcam N/A
Physical Dimension
Dimension (W x D x H in mm) 271.2 x 371.6 x 252
Weight (N. W. in kg) Approx. 4 kg
Environmental
Operating Condition 0°C – 50°C, 20%RH – 90%RH
Storage Condition -20°C – 70°C, 10%RH – 90%RH
** The product information and specifications are subject to change without prior notice.
