MT-4308W

4000-14000-144000-134000-124000-114000-104000-94000-84000-74000-64000-54000-44000-3

MT-4308W (U.S. Patent 9436226 B2) is specifically designed for both retail and hospitality applications.
The retail-ready 8” mobile POS runs on the latest Intel Cherry Trail processor, and supports MSR/RFID attachment, 2D barcode scanner attachment with pistol grip, and an optional dock station to converts the device into a full-fledged, stationary POS.

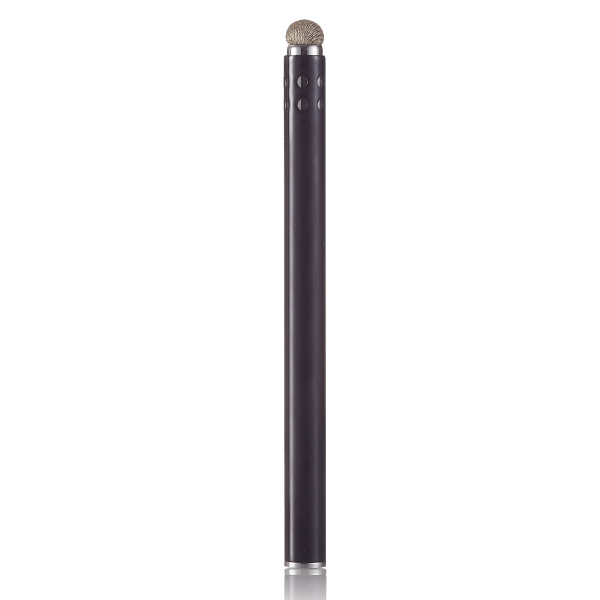

MT-4308W/R Retail Package: MT-4308W Tablet + PG-200 Pistol Grip + 1 * RB-3000 Removable Battery + 1 * Touch Pen (Scanner, MSR, RFID & DS-200/210 dock station optional)
MT-4308W/H Hospitality Package: MT-4308W Tablet with Hand Strap + 1 * Touch Pen (MSR, RFID & DS-300/310 dock station optional)

Category:

Retail-ready Mobility

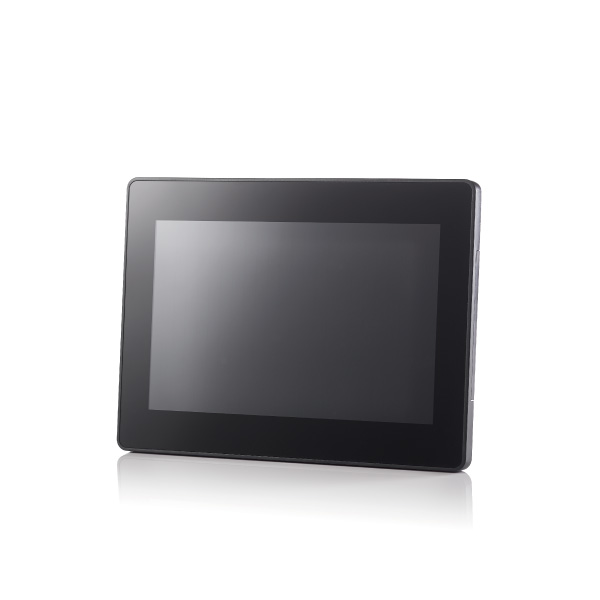

The latest Windows based mobile POS MT-4308W is proven to be retail-ready with a Corning Gorilla Glass touchscreen display to ensure its durability and improved drop resistance.

Ergonomic Design

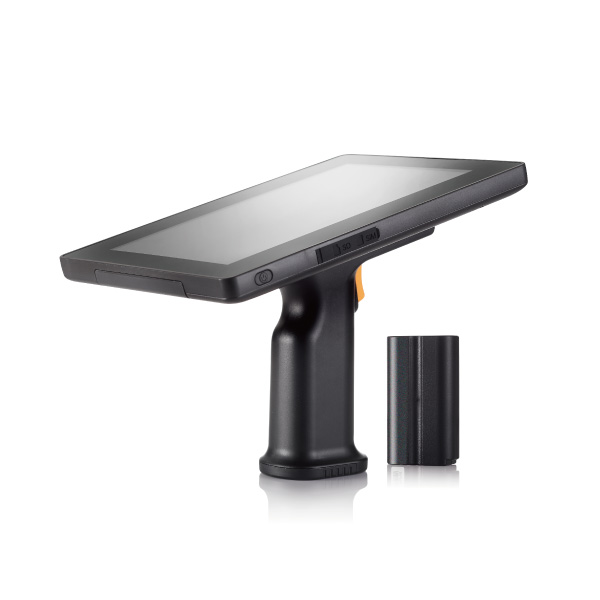

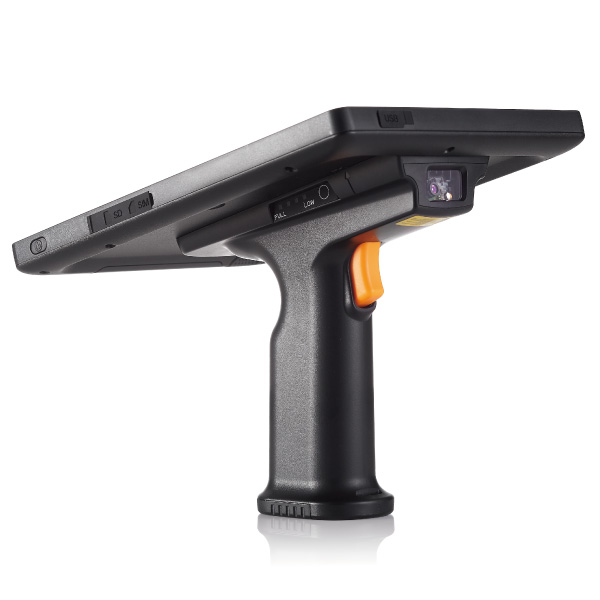

The detachable pistol grip (PG-200) for MT-4308W is a truly ingenious invention. It houses a 1D or 2D barcode scanner in the pistol grip shape handle, which is ergonomically designed to take the strain out of operator’s hand and arm, and enabling the user to easily carry and handle the tablet. It smartly solves the cumbersome issue of larger mobile devices.

Extra Protection

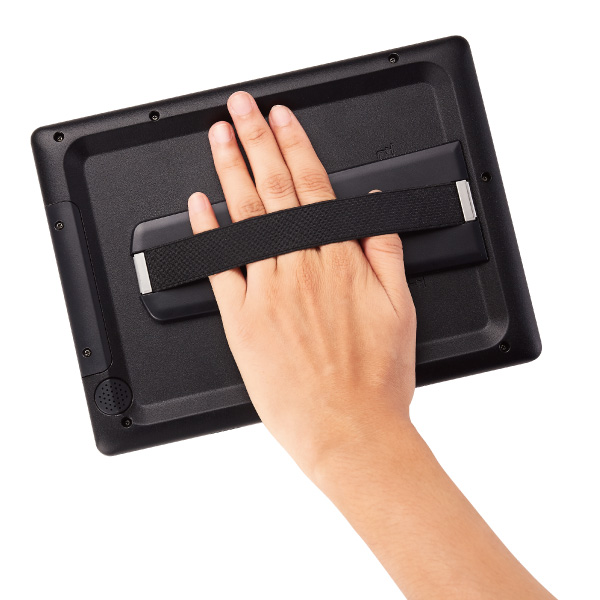

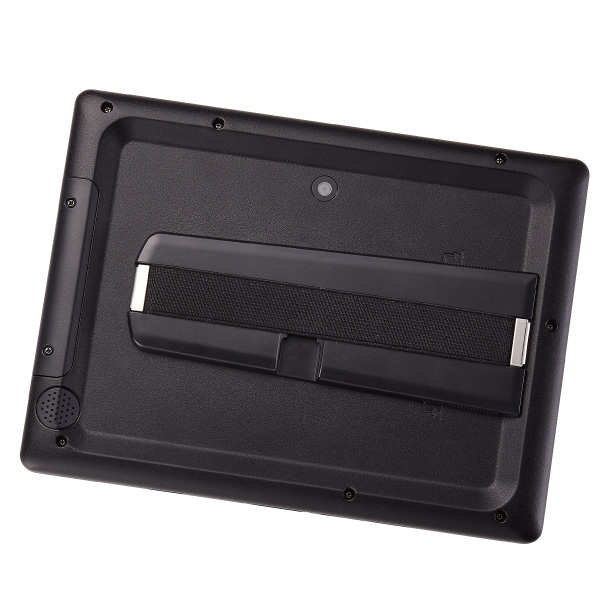

Hand strap that comes with the hospitality package prevents the tablet from dropping on the ground accidentally and eases the use’s fatigue during the hours of work.

Long Hour Operation

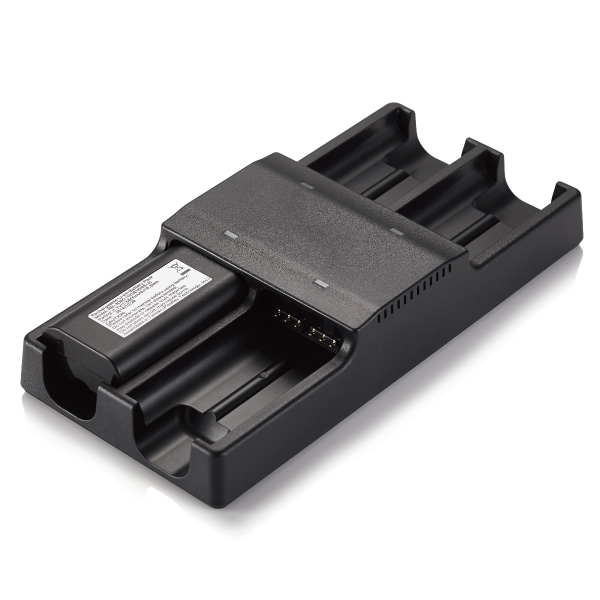

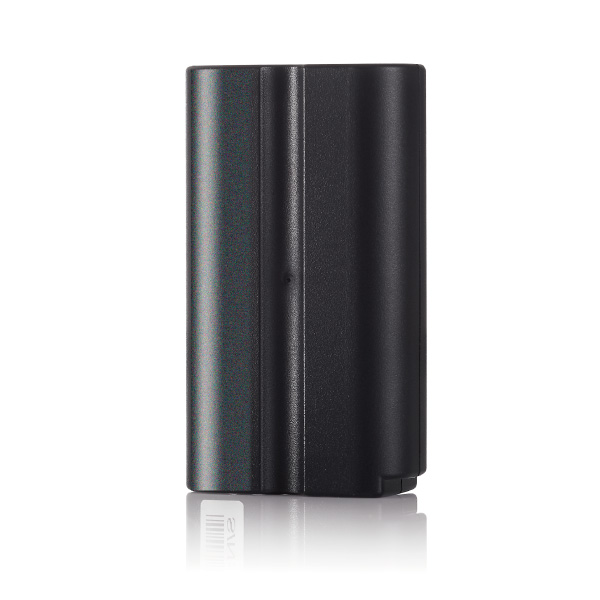

MT-4308W is designed with advanced power saving technology that provides long battery life for daily operation. However, for store owners who require even longer battery life for more intensive usage, the pistol grip also houses a removable battery that can vastly extend the overall operating time.

Versatile Function

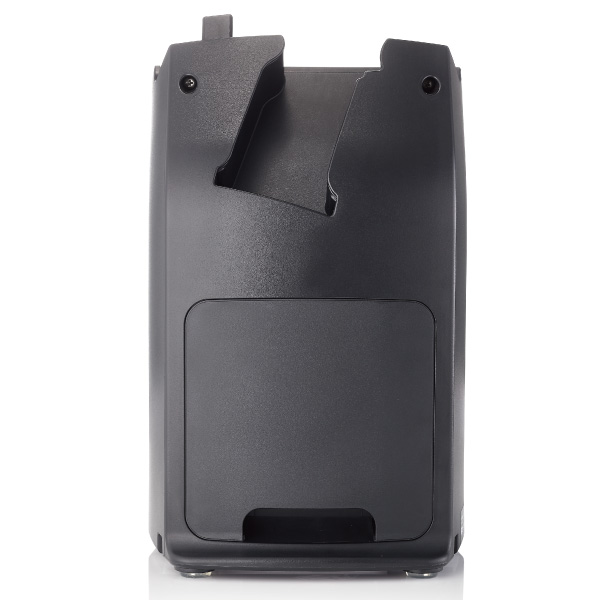

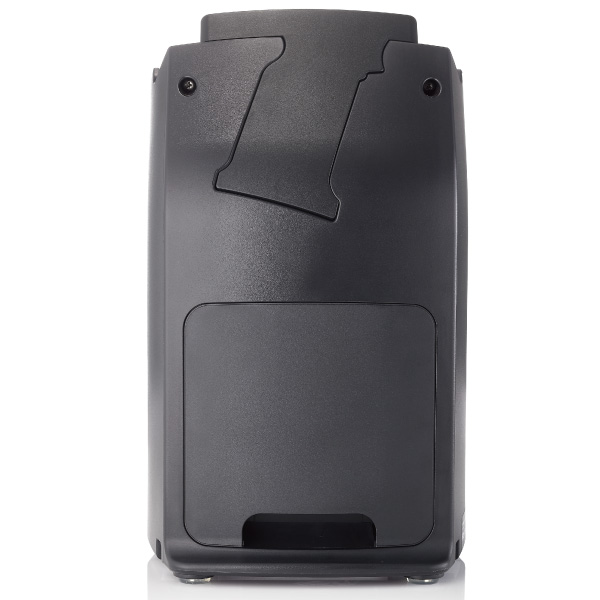

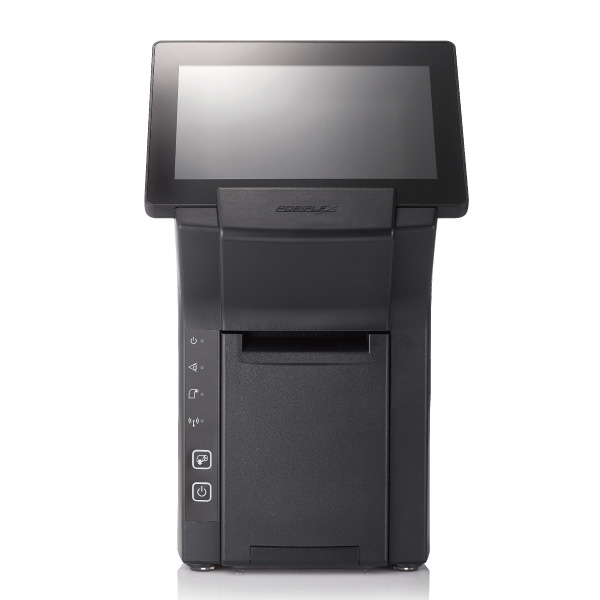

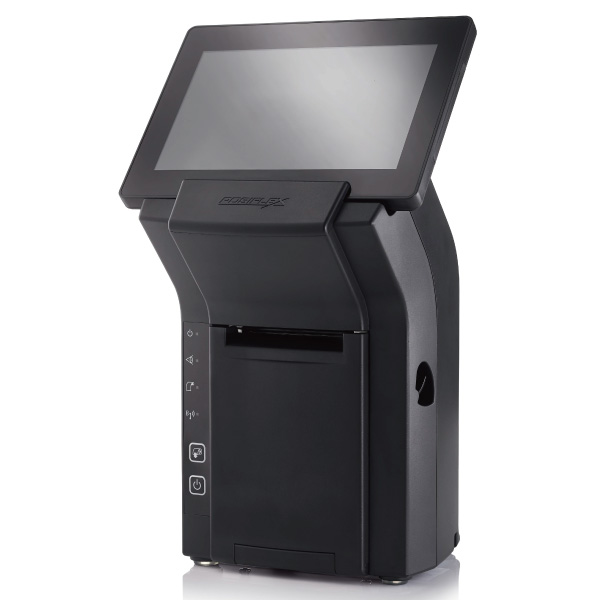

Another highlight of MT-4308W is the optional dock station, which has a 3” WIFI thermal POS receipt printer built-in, and connectivity options such as Serial ports, USB ports, LAN ports and CR ports. Once the tablet is integrated with its dock station, an all-in-one POS is instantly at your disposal. The MT-4308W offers more than just mobility but versatility.

Specification MT-4308W
Tablet
Battery 4800 mAh (minimum)
Brightness 350 nits
Buttons Power
Camera 8MP AF rear facing camera
CPU Intel Cherry Trail x5-Z8350, 4C, 1.44 GHz up to 1.92 GHz
Dimension (tablet only) 212 x 16.8 x 157
I/O micro-SD, micro-SIM, Power Jack, micro-USB
LCD 1280 x 800, 8″ TFT LCD with LED backlight (default 1024 x 768 resolution)
Memory 2GB DDR3L SDRAM
OS Windows 10 IoT 64 bits
Sensor G sensor
Speaker / Mic Yes / Yes
Storage 64GB eMMC
Touch input PCAP touch w/ multi-touch support
Weight (tablet only) 550
Wireless connectivity WIFI 802.11abgn 2.4 GHz / 5.0 GHz dual band + BT v4.0 ; optional 3G
** The product information and specifications are subject to change without prior notice.
